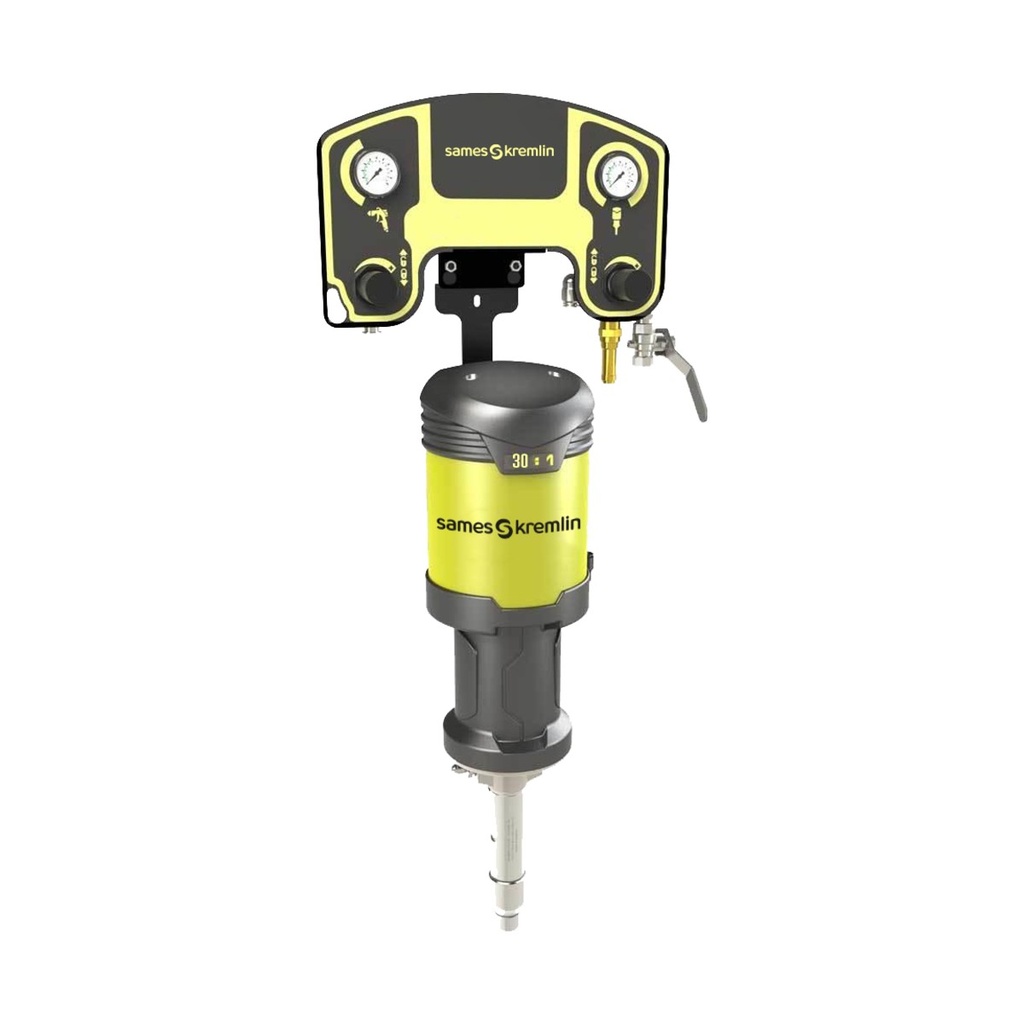

Paint Pump 30C25

The 30C25 pump is for painting small quantities of medium viscosity products, water or solvent based. Up to 180 bar of fluid pressure to compensate pressure drops

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Fluid Output at 20 cycles / mn (gal/min) : 0.13
• Fluid Output at 20 cycles / mn (l/min) : 0.5
• Fluid Output at 60 cycles / mn (gal/min) : 0.4
• Fluid Output at 60 cycles / mn (l/min) : 1.5
• Free Flow Rate (gal/min) : 0.4
• Free Flow Rate (l/min) : 1.5
• Number of cycles per liter of products : 40
• Pump displacement (cc/cycle) : 25
• Pump displacement (in^3/cycle) : 1.52
• Depth (in) : 6.69
• Depth (mm) : 170
• Height (in) : 23
• Height (mm) : 585
• Width/depth (in) : 6.22
• Width/depth (mm) : 158
• Maximum Material Pressure (bar) : 180
• Maximum Material Pressure (psi) : 2610
• Pressure ratio : 30/1
• Air Consumption (cfm) : 4.18
• Air Consumption (m3/h) : 7.1
• Weight (kg) : 7.6
• Weight (lbs) : 17
• Maximum Temperature (°C) : 60
