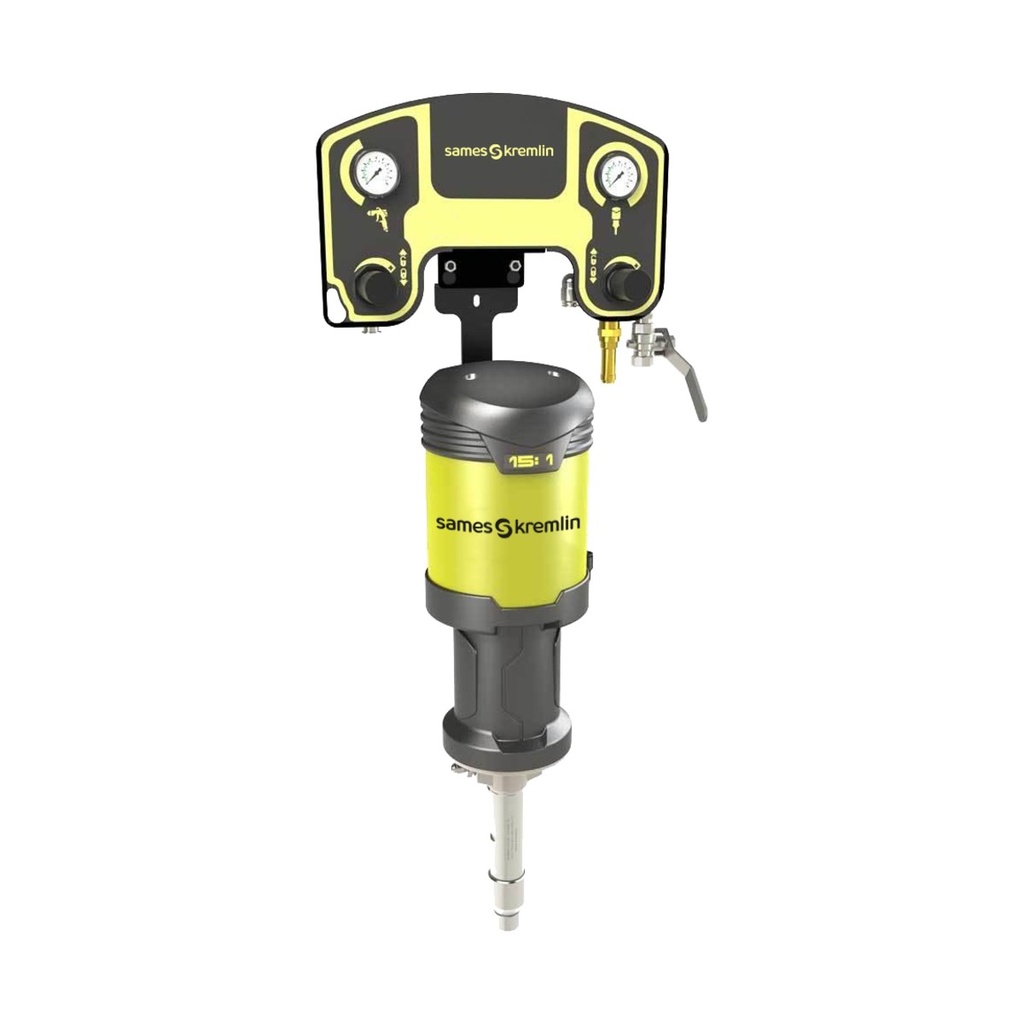

Airmix Paint Pump 15C25

The 15C25 Airmix® pump is perfect for painting small quantities of fluid products, water or solvent based. Up to (90 bar / 1305 psi) of fluid pressure to compensate pressure drops.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Fluid Output at 20 cycles / mn (gal/min) : 0.13
• Fluid Output at 20 cycles / mn (l/min) : 0.5
• Fluid Output at 60 cycles / mn (gal/min) : 0.4
• Fluid Output at 60 cycles / mn (l/min) : 1.5
• Free Flow Rate (gal/min) : 0.4
• Free Flow Rate (l/min) : 1.5
• Number of cycles per liter of products : 40
• Pump displacement (cc/cycle) : 25
• Pump displacement (in^3/cycle) : 1.52
• Depth (in) : 6.7
• Depth (mm) : 170
• Height (in) : 22.6
• Height (mm) : 575
• Width/depth (in) : 12.6
• Width/depth (mm) : 320
• Maximum Material Pressure (bar) : 90
• Maximum Material Pressure (psi) : 1305
• Pressure ratio : 15/1
• Air Consumption (cfm) : 1.65
• Air Consumption (m3/h) : 2.8
• Weight (kg) : 7.7
• Weight (lbs) : 17
• Maximum Temperature (°C) : 60
