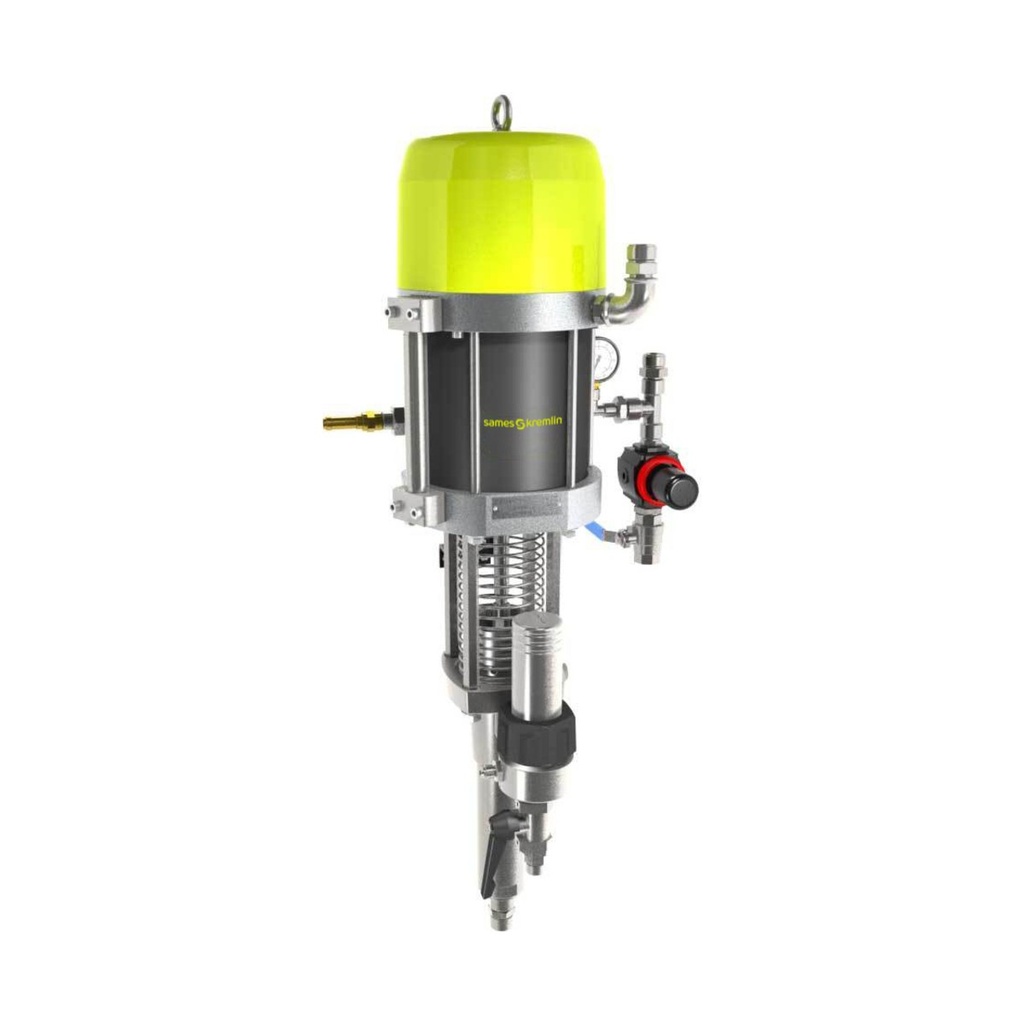

40C100 Airless Paint Pump

This paint pump is perfect for Airless applications and provides exceptional performance.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Fluid Output at 20 cycles / mn (gal/min) : 0.5
• Fluid Output at 20 cycles / mn (l/min) : 2
• Fluid Output at 60 cycles / mn (gal/min) : 1.58
• Fluid Output at 60 cycles / mn (l/min) : 6
• Free Flow Rate (gal/min) : 1.58
• Free Flow Rate (l/min) : 6
• Number of cycles per liter of products : 10
• Pump displacement (cc/cycle) : 100
• Pump displacement (in^3/cycle) : 6.1
• Depth (in) : 48.5
• Depth (mm) : 280
• Height (in) : 31.5
• Height (mm) : 800
• Width/depth (in) : 15.7
• Width/depth (mm) : 400
• Maximum Material Pressure (bar) : 240
• Maximum Material Pressure (psi) : 3480
• Pressure ratio : 40/1
• Air Consumption (cfm) : 25.4
• Air Consumption (m3/h) : 43.2
• Weight (kg) : 22
• Weight (lbs) : 48.5
• Maximum Temperature (°C) : 60
