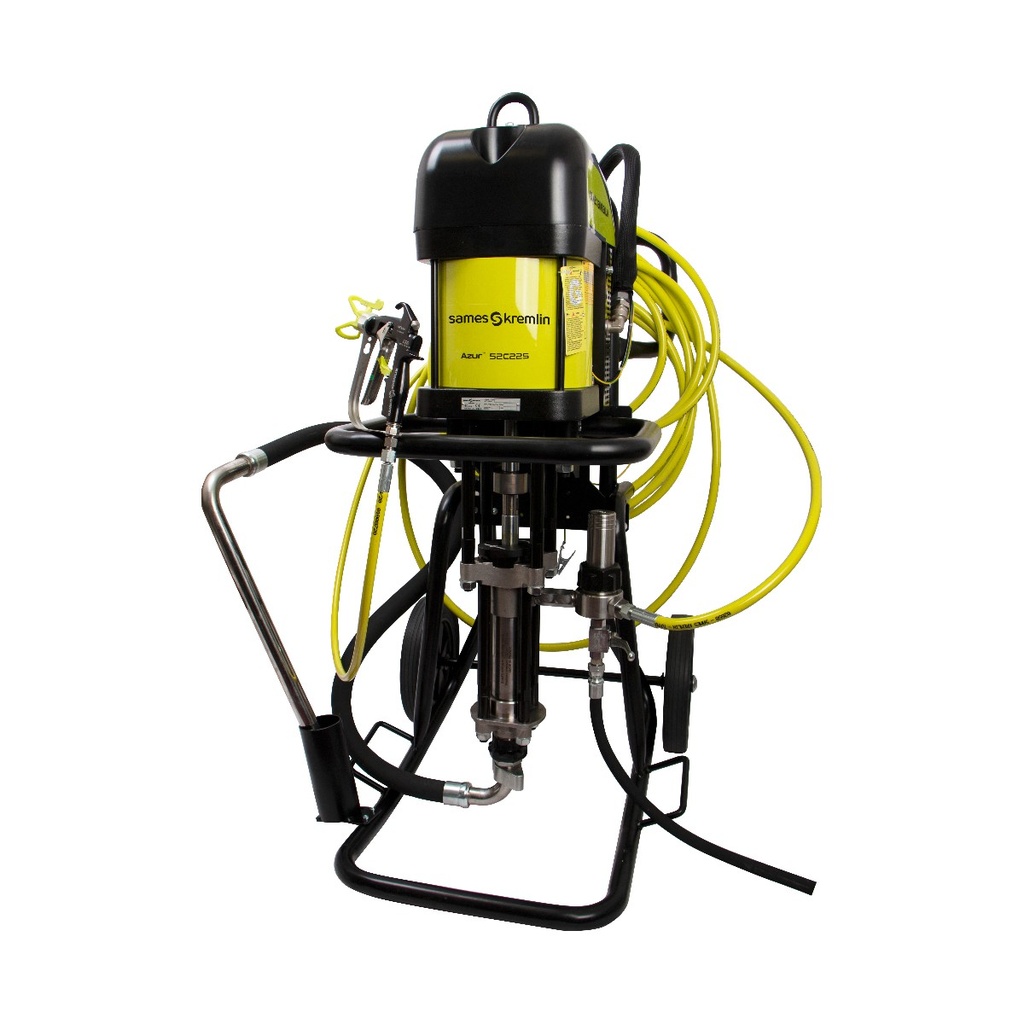

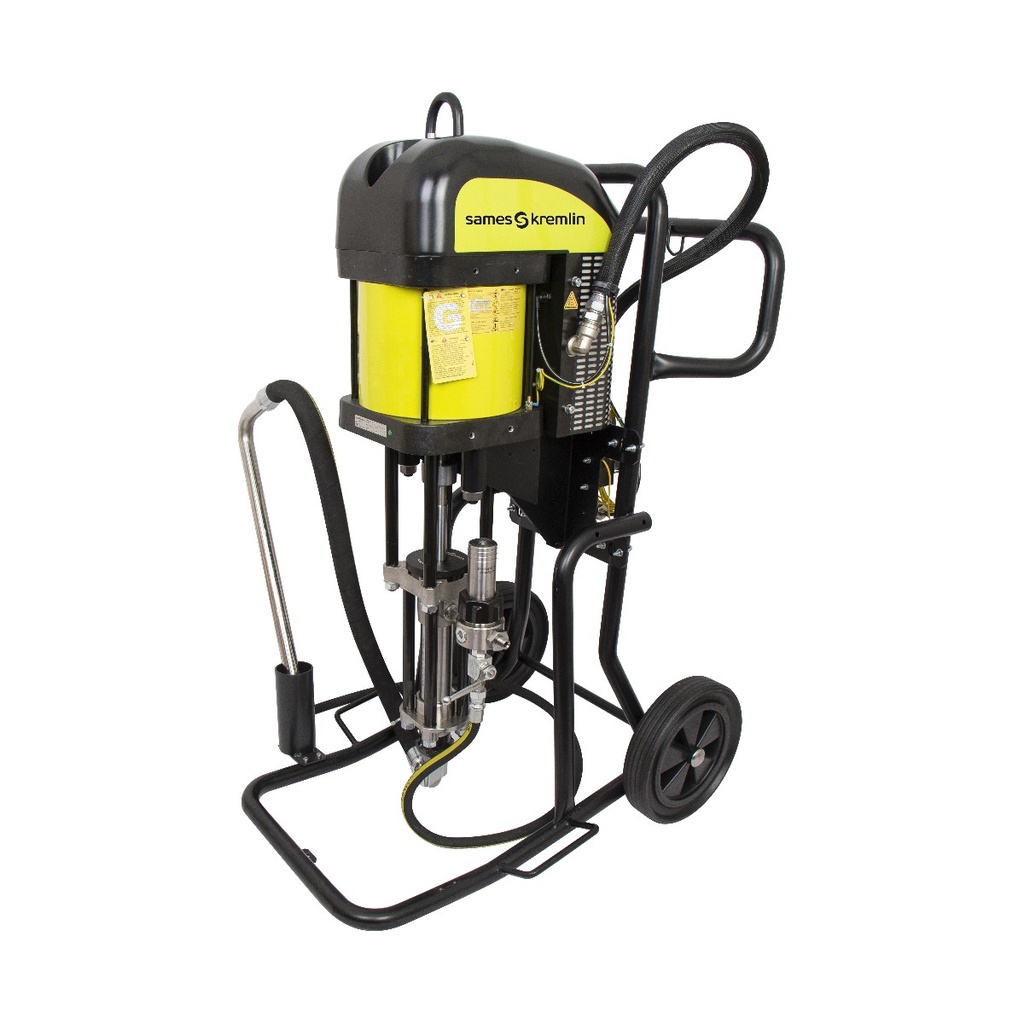

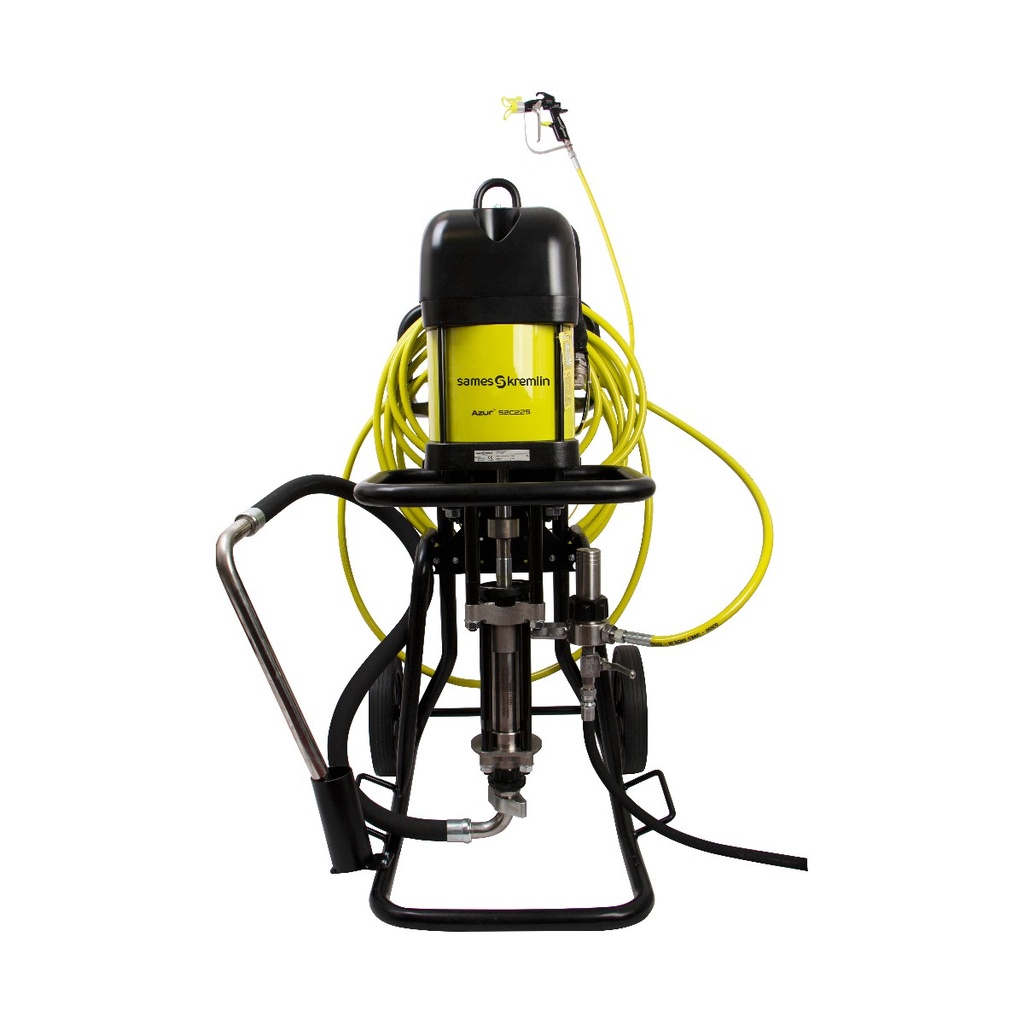

Airless Paint Pump Azur 52C225

Azur range is the recommended line for the protective coatings market. The pump will transfer material without compromising your finish quality whether you are using single component paints, pre-mixed 2K, zinc-rich materials, and other types of coatings.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Fluid Output at 20 cycles / mn (gal/min) : 1.2
• Fluid Output at 20 cycles / mn (l/min) : 4.5
• Fluid Output at 60 cycles / mn (gal/min) : 3.5
• Fluid Output at 60 cycles / mn (l/min) : 13.5
• Free Flow Rate (gal/min) : 3.5
• Free Flow Rate (l/min) : 13.5
• Number of cycles per liter of products : 4
• Pump displacement (cc/cycle) : 225
• Pump displacement (in^3/cycle) : 13.7
• Depth (in) : 17
• Depth (mm) : 425
• Height (in) : 44.5
• Height (mm) : 1132
• Width/depth (in) : 12.5
• Width/depth (mm) : 317
• Maximum Material Pressure (bar) : 312
• Maximum Material Pressure (psi) : 4524
• Pressure ratio : 52/1
• Air Consumption (m3/h) : 126
• Weight (kg) : 60
• Weight (lbs) : 133
• Maximum Temperature (°C) : 60
• Maximum Temperature (°F) : 140
