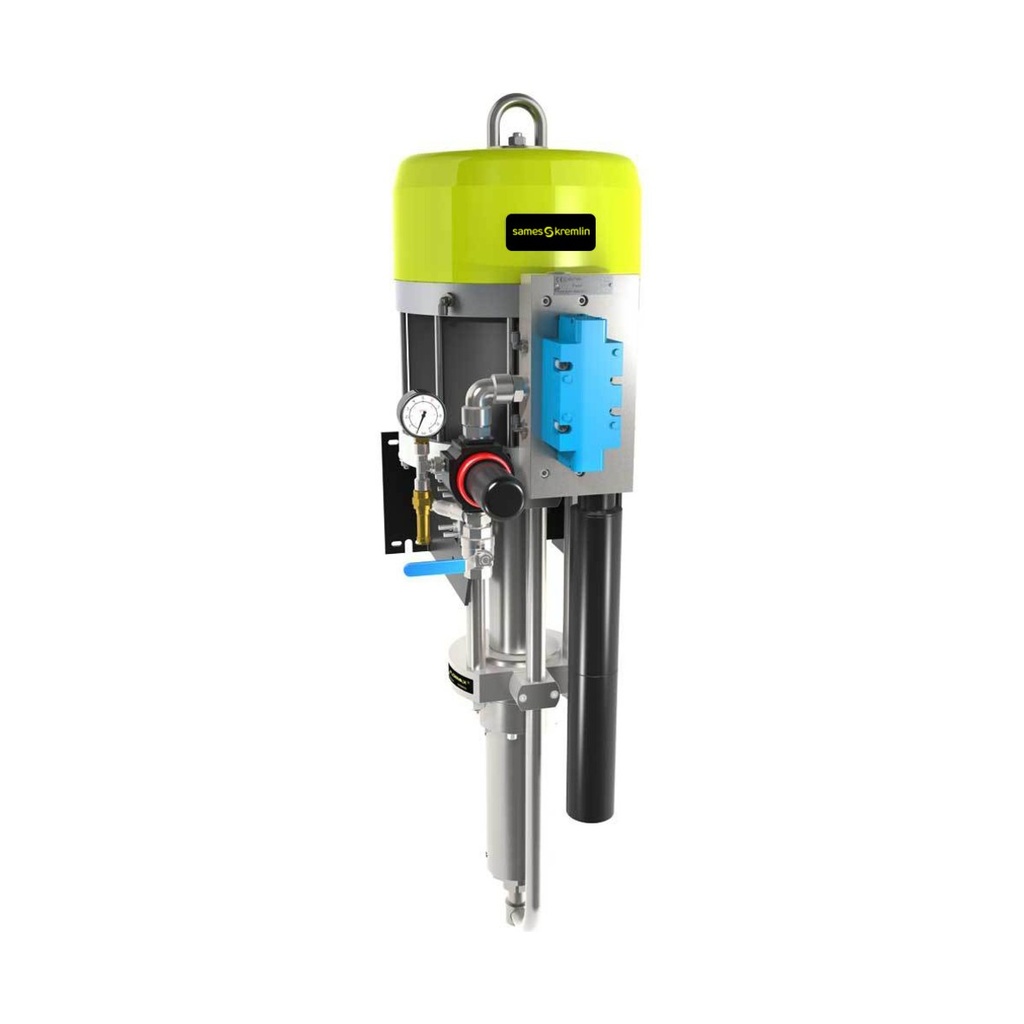

Airless Flowmax Paint Pump 40F260

This Flowmax® pump is recommended for anti-corrosion applications.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Fluid Output at 20 cycles / mn (gal/min) : 1.37
• Fluid Output at 20 cycles / mn (l/min) : 5.2
• Fluid Output at 60 cycles / mn (gal/min) : 4
• Fluid Output at 60 cycles / mn (l/min) : 15.6
• Free Flow Rate (gal/min) : 4
• Free Flow Rate (l/min) : 15.6
• Number of cycles per liter of products : 4
• Pump displacement (cc/cycle) : 260
• Pump displacement (in^3/cycle) : 16
• Depth (in) : 20
• Depth (mm) : 510
• Height (in) : 44.5
• Height (mm) : 1120
• Width/depth (in) : 11.8
• Width/depth (mm) : 300
• Maximum Material Pressure (bar) : 240
• Maximum Material Pressure (psi) : 3480
• Pressure ratio : 40/1
• Weight (kg) : 110
• Weight (lbs) : 242
• Maximum Temperature (°C) : 50
• Maximum Temperature (°F) : 122
• Power Source : Pneumatic
