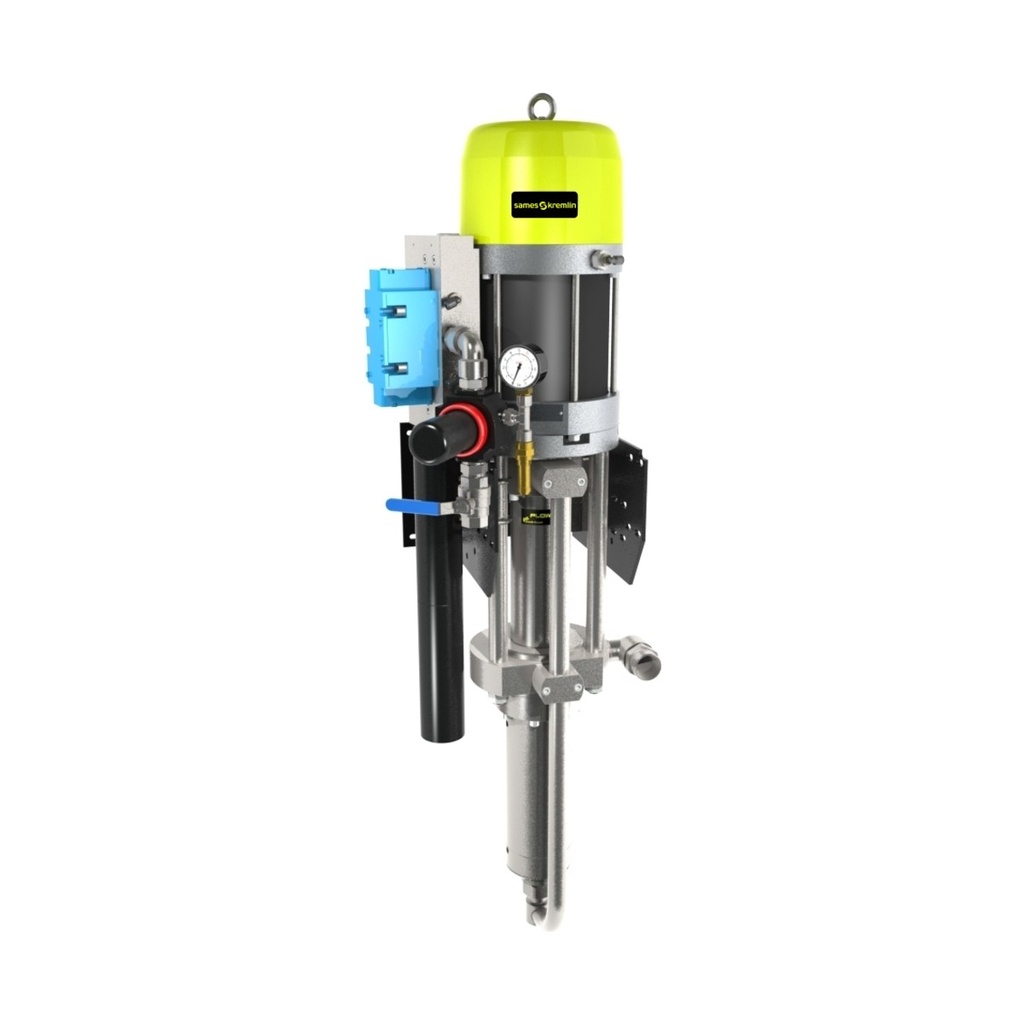

PCS - Flowmax Circulating Pump 04F440

Flowmax® paint circulation system pump for medium to low pressure applications.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Fluid Output at 20 cycles / mn (gal/min) : 2.3
• Fluid Output at 20 cycles / mn (l/min) : 8.8
• Fluid Output at 60 cycles / mn (gal/min) : 7
• Fluid Output at 60 cycles / mn (l/min) : 26.4
• Free Flow Rate (l/min) : 26.4
• Number of cycles per liter of products : 23
• Pump displacement (cc/cycle) : 440
• Pump displacement (in^3/cycle) : 26.8
• Depth (in) : 10.8
• Depth (mm) : 275
• Height (in) : 43.3
• Height (mm) : 1100
• Width/depth (in) : 15
• Width/depth (mm) : 380
• Maximum Material Pressure (bar) : 24
• Maximum Material Pressure (psi) : 347.8
• Pressure ratio : 4/1
• Air Consumption (cfm) : 7.5
• Air Consumption (m3/h) : 12.7
• Weight (kg) : 52
• Weight (lbs) : 114.6
• Maximum Temperature (°C) : 50
• Maximum Temperature (°F) : 122
