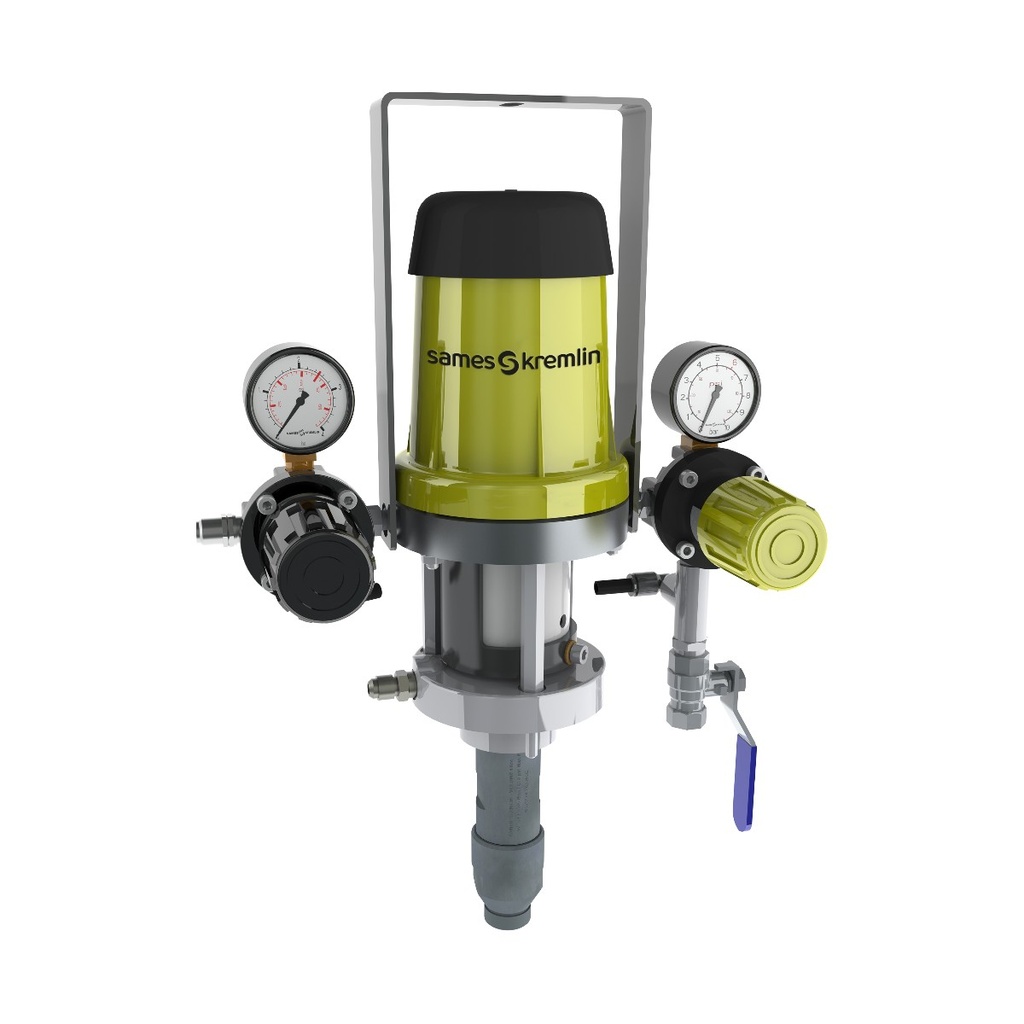

Paint pump 10C18

The 10C18 Airmix® pump is perfect for painting small quantities of fluid products, water-based or solvent-based. The simple design reduces maintenance and cleaning time.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Fluid Output at 20 cycles / mn (gal/min) : 0.095
• Fluid Output at 20 cycles / mn (l/min) : 0.36
• Fluid Output at 60 cycles / mn (gal/min) : 0.28
• Fluid Output at 60 cycles / mn (l/min) : 1.08
• Free Flow Rate (gal/min) : 0.29
• Free Flow Rate (l/min) : 1.1
• Number of cycles per liter of products : 55
• Pump displacement (cc/cycle) : 18
• Pump displacement (in^3/cycle) : 1.09
• Depth (in) : 5.9
• Depth (mm) : 150
• Height (in) : 15.5
• Height (mm) : 392.5
• Width/depth (in) : 11
• Width/depth (mm) : 278.5
• Maximum Material Pressure (bar) : 60
• Maximum Material Pressure (psi) : 870
• Pressure ratio : 10/1
• Air Consumption (cfm) : 1.12
• Air Consumption (m3/h) : 1.9
• Weight (kg) : 5.3
• Weight (lbs) : 12
• Maximum Temperature (°C) : 60
