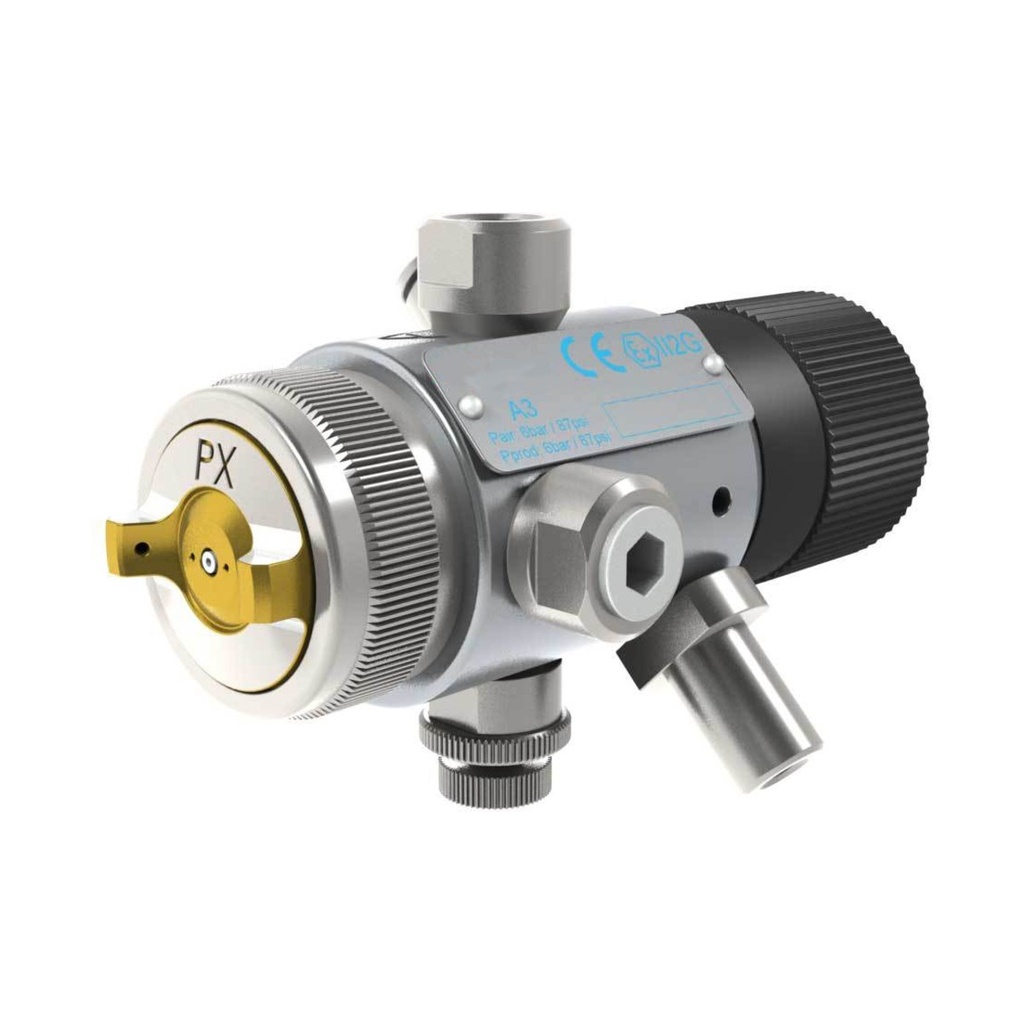

A3 HPA Automatic Airspray Spray Gun

The A3 compact automatic low pressure spray gun is recommended for touch-up & delicate work or when volume is an issue.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Recommended Air Pressure (bar) : 3 to 6
• Recommended Air Pressure (psi) : 43 to 87
• Trigger Air Pressure (bar) : 3
• Trigger Air Pressure (psi) : 43.5
• Atomizing Air Inlet : F 1/8" NPS
• Pilot Air Inlet : F 1/8" NPS
• Maximum Flow (cc/min) : 80
• Maximum Flow (gal/min) : 0.021
• Minimum Flow (cc/min) : 150
• Minimum Flow (gal/min) : 0.039
• Maximum Material Pressure (bar) : 6
• Maximum Material Pressure (psi) : 87
• Air Consumption (cfm) : 5.9
• Air Consumption (m3/h) : 10
• Weight (lbs) : 0.7
• Maximum Temperature (°C) : 50
• Maximum Temperature (°F) : 122
• Material Inlet Port : F 1/8 NPS + F 1/8 NPS + plug 1/8 NPS
• Body Material : Aluminium
• Maximum Fluid Temperature (°C) : 50
• Maximum Fluid Temperature (°F) : 122
• Wetted Parts : Aluminum, Stainless steel 303, PTFE
• Certification : II2G Ex h IIB T6 Gb X

Accessories

Genuine SAMES KREMLIN equipment, distributed by CREDO Engineering.
