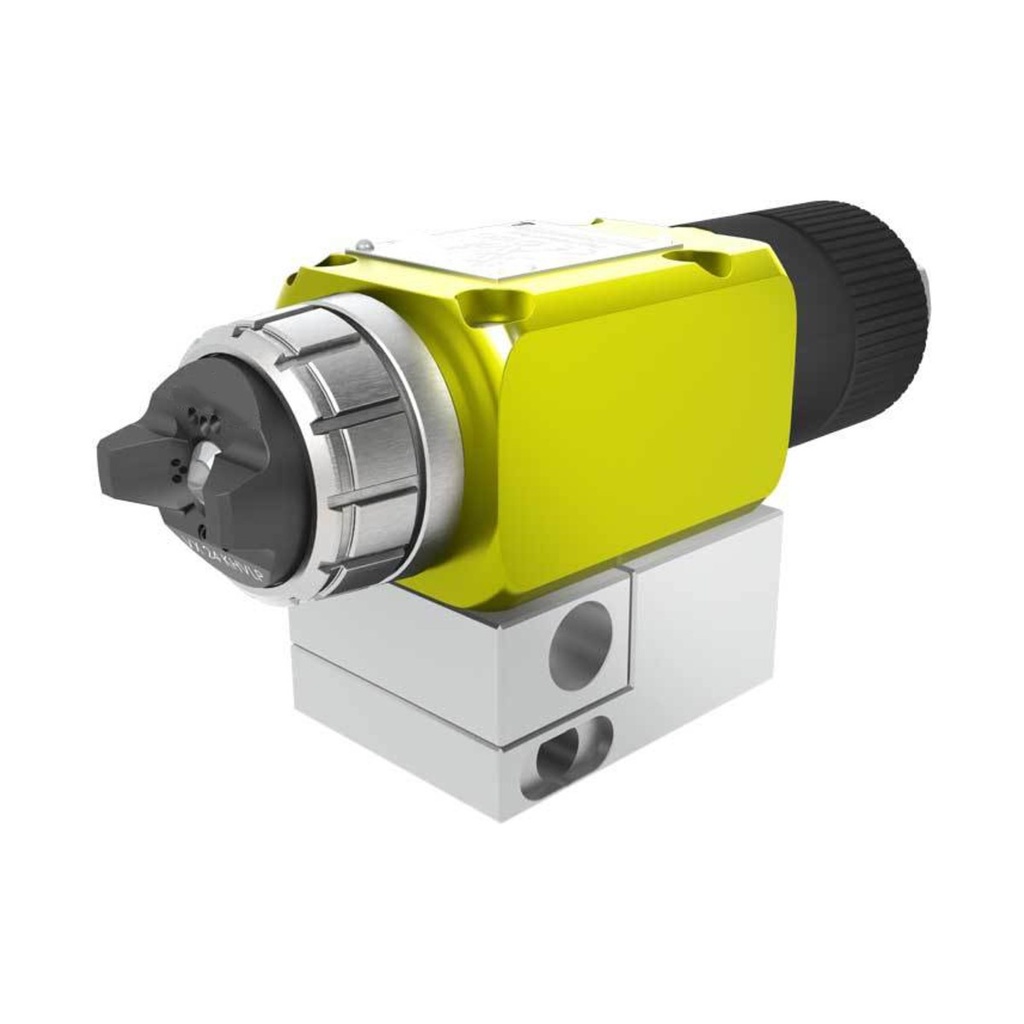

Automatic Airmix Spray Gun AVX

The automatic Airmix® AVX spray gun ensures high level performance with unsurpassed finish & excellent atomization quality. The base-mounted modular design allows for quick maintenance with minimum downtime.

Specifications

• Maximum Air Pressure (bar) : 6
• Maximum Air Pressure (psi) : 87
• Recommended Air Pressure (bar) : 0.7 - 3
• Recommended Air Pressure (psi) : 10 - 43
• Trigger Air Pressure (bar) : 3
• Trigger Air Pressure (psi) : 43
• Optimal Transfer Efficiency (%) : 86
• Atomizing Air Inlet : F 1/4 NPS (base) or M1/4 NPS (fittings)
• Pilot Air Inlet : F 1/8 NPS (base) or FF4x6 (fittings)
• Maximum Material Pressure (bar) : 200
• Maximum Material Pressure (psi) : 2900
• Minimum Material Pressure (bar) : 20
• Minimum Material Pressure (psi) : 290
• Air Consumption (cfm) : 1.77 - 4.41
• Air Consumption (m3/h) : 3 - 7.5
• Weight (lbs) : 16
• Maximum Temperature (°C) : 50
• Maximum Temperature (°F) : 122
• Material Inlet Port : 2 x F 1/4 NPS (base) or 2 x M1/2'' JIC (fittings)
• Body Material : Aluminium
• Maximum Fluid Temperature (°C) : 50
• Maximum Fluid Temperature (°F) : 122
• Wetted Parts : Stainless steel 303, PTFE
• Additional Technical characteristics : The fluid output is determined by the tip used
• Certification : CE-UKCA II2G Ex h IIB T6 Gb X
