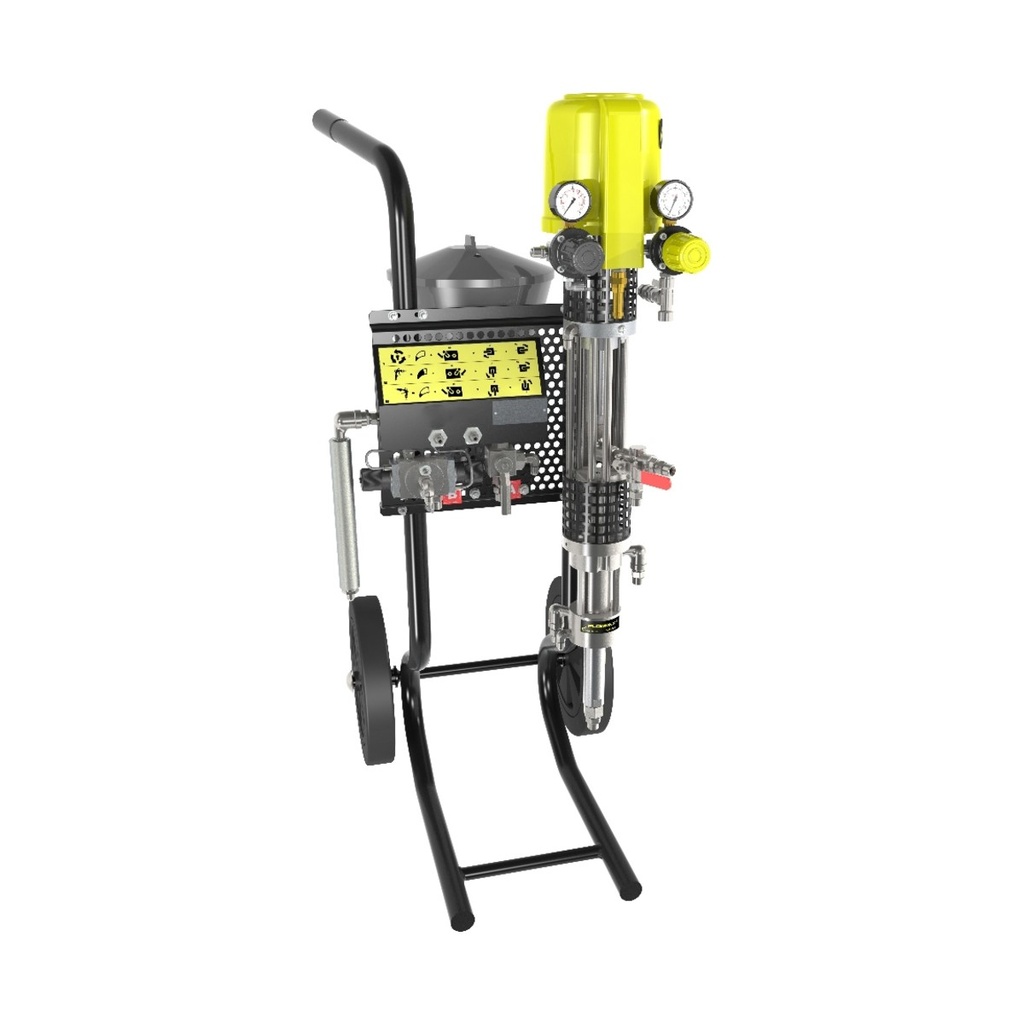

PU 2160F

PU 2160F Mechanical meter mixing machine comes ready to use for 2K materials. It includes a metering pump (fixed ratio) for medium Airmix® pressures and incorporates the Flowmax® Bellows technology on the catalyst fluid section for total reliability.

Specifications

• Min. inlet compressed air (bar) : 6
• Min. inlet compressed air (psi) : 87
• Recommended Material Viscosity Range : 180 (800) in CA4 seconds (or centipoise cps)
• Maximum Material Pressure (bar) : 120
• Pressure ratio : 20:1 to 10:1
• Weight (kg) : 60
• Weight (lbs) : 132
• Mixing Accuracy (%) : 5
• Mixing ratio : 1:1 2:1 5:1 10:1
• Number of A Components (Min/Max) : 1 Min/Max
• Number of B Components (Min/Max) : 1 Min/Max
• Number of Products (base-catalyst-solvent) : 2 (base & catalyst)
• Air Inlet Fitting : F 3/8 BSP
• Material Outlet Port : 1/2 JIC
• Certification : ATEX II 2G IIA T3
